上海斯远包装机械有限公司

Product

Products

Liquid/Paste Packing Machine

Features:

Quality OMRON PLC and 7” colorful touch screen control whole machine

Bag-making, measuring, filling, sealing, cutting and counting are finished automatically

Bag length controlled by PLC or photo mark, easily and time saving.

The temperature is controlled by PID independent, more suitable for different package material.

The Driving system is simple and reliable, and maintenance is easy.

Package material, all laminated film are available, such as: PET/PE, Paper/PE, PET/AL/PE, OPP/PE, PET/APET/PE, BOPP/PE etc.

Usage	Suitable for liquid and paste products. Liquid: such as wine, oil, vinegar, soy sauce, etc. Paste: such as shampoo, lotion, honey, salad, jam, etc.
Optional device	Ribbon printer, 2. Batch cutting device, 3. Straight cutter, 4. Heating hopper, 5. Round hole, 6. Euro hole
Technical parameters	Model	SYJ-240	SYJ-300

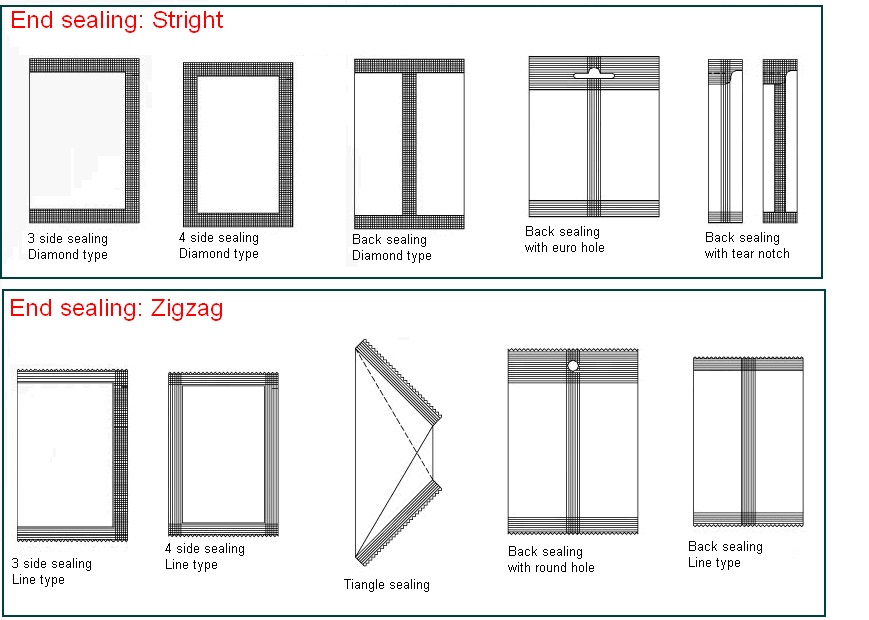

	Bag shape	3 /4 side sealing	3 /4 side sealing, back sealing Triangle sealing
	Measurement method	Plunger pump or Needle valve pump
	Range	1-100ml	1-150ml
	Bag size	W: 30-120mm L: 30-170mm	W:30-150mm L: 30-170mm
	Speed	40-60 bag/min
	Voltage	220v 50-60Hz	220v 50-60Hz
	Power	1800W	2200W
	Net weight	200kg	250kg
	Machine size	913x760x1760mm	997x909x1760mm
